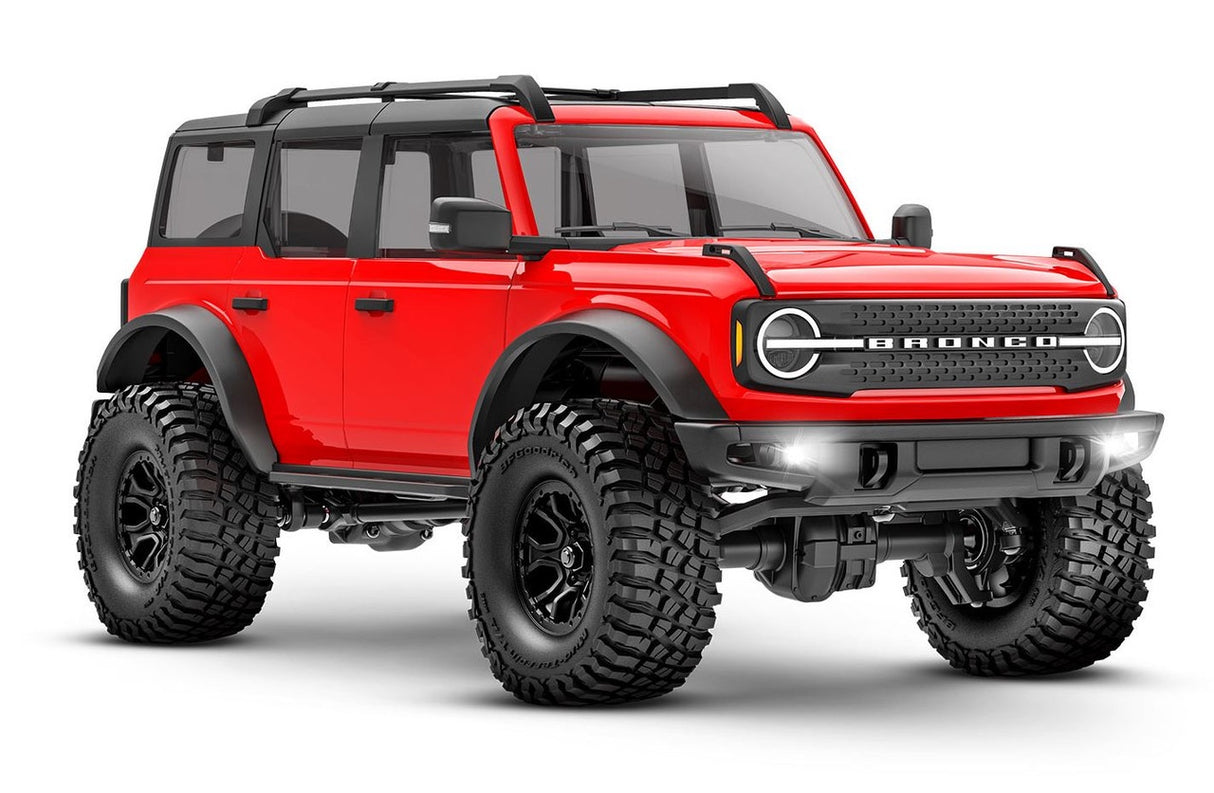

Traxxas TRX-4M 1/18 Crawler with Ford Bronco Body
The Traxxas TRX-4M 1/18 Electric Rock Crawler with Ford Bronco Body is an adventure-driven micro crawler that can be found at your local hobby shop! The highly detailed ABS bodyshell features clipless mounting to the rigid C-channel frame. This frame is supported by four oil-filled GTM shocks to add control and keep the body from bouncing around. Scale straight axles are connected to the frame using full 4-link suspension. Adding to the performance, this truck features up to 45° steering angle to help tackle the trail ahead.
Key Features:
- Highly detailed licensed body shell made of durable ABS
- Triangulated 4-link front and rear suspension
- Oil-filled GTM shocks
- Wheels and tires mounted to 7mm hex
- Full-time shaft-driven 4-wheel drive
- Low-CG Battery Tray
- Superior 45° steering angle
- Direct steering (no servo saver)
- Powerful Titan® 87-turn brushed motor
- ECM-2.5 Electronic Control Module incorporates ESC, receiver, and LED controller
- Fully waterproof for all-weather fun
- Includes transmitter, battery and charger for out of the box fun
What's In The Box?
- (1) Traxxas TRX-4M Micro Rock Crawler with:
- (1) Officially Licensed ABS Hard Body
- (1) Titan 180 87-turn motor
- (1) ECM-2.5 Electronic Control Module
- (1) TQ transmitter
- (1) 7.4 volt 750mAh 2-cell LiPo battery
- (1) 2-amp USB fast charger with iD
- Tools for maintenance
Required for Operation (Not Included)
4x AA Alkaline Batteries
Technical Specifications:
Scale: 1/18
Length: 10.3 inches (262mm)
Wheelbase: 6.10 inches (155mm)
Track Width: 4.9 inches (124mm)
Height: 4.6 inches (117mm)
Ground Clearance: 1.12 inches (29mm)
Weight (w/o battery): 1.03lbs (468g)
Approach Angle: 54°
Breakover Angle: 45°
Departure Angle: 48°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Wheels: 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires: 2.2 x 1.0 inches (57 x 25.4mm)
Motor: Brushed 180-Size 87T
Differential Type: Fully Locked; 2:1 Axle Ratio
Battery Tray: 50.5x31mm (LxW)
