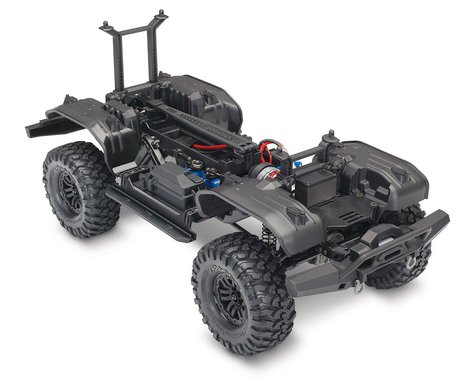

Traxxas TRX-4 Kit with TQi Radio

The Traxxas TRX-4 Scale and Trail Crawler chassis kit offers the same innovative features as the RTR vehicle, combined with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.



Easy to Follow Assembly Instructions

The TRX-4 Chassis Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Chassis Kit.







Features:

Easy to follow full-color assembly manual

Trail-tuned XL-5 HV Waterproof Electronic Speed Control

Powerful Titan™ 21T reverse rotation motor

Portal Axles

Rigid Steel Frame

Full-time shaft driven 4-wheel drive

Tough 6mm stub axles

Steel front CV driveshafts

Hardened steel rear axle shafts

Remote locking steel gear differentials with cable-actuation

Steel gear transfer case

Innovative Battery Compartments

Secondary battery mount over front axle for forward weight bias

Two speed high/low range transmission with remote shifting

Superior 45° steering angle

Front — 3 link with panhard

Rear — Triangulated 4 link

Pre-assembled heavy-duty rod ends with steel hollow balls

5mm diameter steel link rods with 4mm threaded ends

Coilover GTS shocks exclusive to TRX-4 chassis

Silver-anodized aluminum bodies

Threaded bodies with collars easily adjust ride height

Silky smooth damping for the toughest trails

O-ring cap seal and dual X-ring shaft seals

Shock oil included in kit

1.9” Canyon Trail tires with trail-tuned foam inserts

Tough black scale wheels

Trail tuned S1 rubber compound

12mm steel hex

Tire glue required

TQi™ 2.4GHz 4-channel transmitter

Patented O-Ring sealed watertight receiver box keeps the micro receiver dry

Sealed Ball Bearings

Hex hardware with rust-resistant black oxide coating

Specifications:

Length: 20.57 inches (523mm)

Front Track: 9.78 inches (249mm)

Rear Track: 9.78 inches (249mm)

Ground Clearance: 3.14 inches (80mm)

Weight: 6.42lb (2.91kg)

Height: 10.47 inches (266mm)

Wheelbase: 12.28 inches (312mm)

Front Shock Length: 3.54 inches (90mm)

Rear Shock Length: 3.54 inches (90mm)

Approach Angle: 63.82°

Departure Angle: 43.22°

Breakover Angle: 58.93°

Front Wheels: 1.9 x 1.02 inches (49 x 26mm)

Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)

Front Tires: 4.64 x 1.89 inches (118 x 48mm)

Rear Tires: 4.64 x 1.89 inches (118 x 48mm)

Wheel Hex: 12mm

Speed Control: XL-5™ HV

Motor (electric): Titan® 21T Reverse Rotation

Transmission: 2-speed Hi-Lo, Remote Shifting

Gear Pitch: 32

Brake Type: Electronic “Hill Hold”

Skill Level: 2

Battery Tray: 158.75 L x 47 W x 23/26mm H



Includes:

Unassembled TRX-4 Chassis Kit

TQi™ 2.4GHz 4-channel radio system

Steering Servo

3 Sub Micro Servos (2-speed & diff locks)

XL-5 HV waterproof ESC

Titan® 21T 550 motor

Full-color step-by-step assembly manual

Needed to Complete:

TRX-4 compatible body (313mm wheelbase)

(4) AA batteries for transmitter

6 or 7 cell NiMH or 2s or 3s LiPo battery pack with Traxxas High-Current Connector

Battery charger

Metric hex drivers (1.5mm, 2.0mm, 2.5mm)

Basic hand tools (screwdrivers, needle nose pliers)

CA glue

Safety glasses
