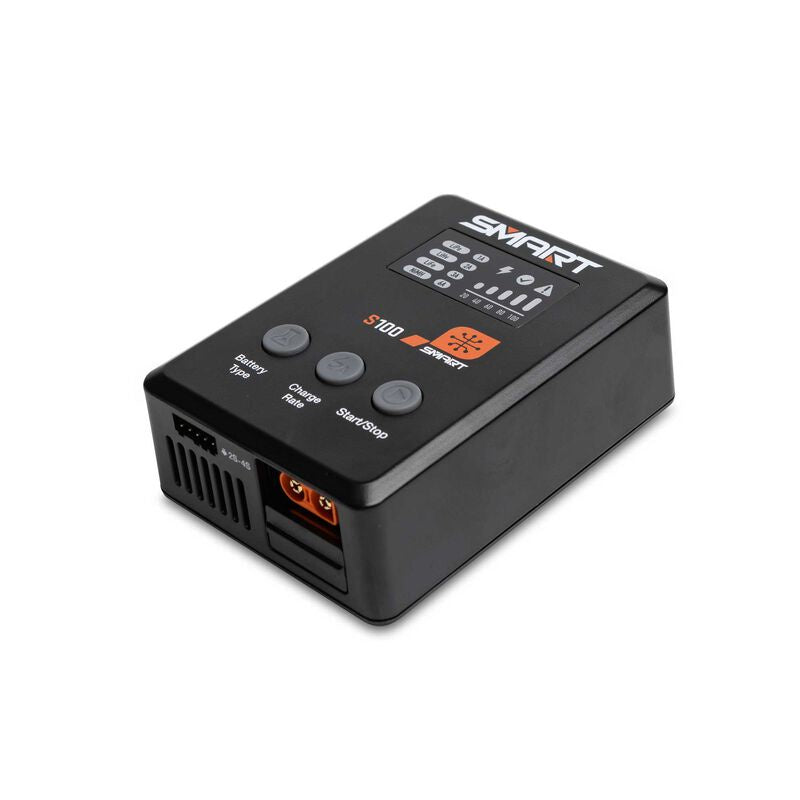

Smart S100 G2 USB-C Charger (Requires USB C Power Source)

The Spektrum™ S100 Smart USB-C Charger provides fast, easy charging for all modelers, especially using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3® or IC5® output ports for adapter-free convenience, and more.

Capable of delivering up to 100W of charging power with compatible power supply and USB-C Cable
Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
Can also be used to charge many standard hobby 1S-4S LiPo, LiIon, LiHV, LiFe, and 1C - 12C Smart NiMH batteries. Note: The S100 will not charge non-Smart NiMH brand batteries.
Accepts firmware updates via USB-C port
Color LED screen and three button interface makes charging and checking on a battery's status simple
In The Box
(1) S100 1x100W USB-C Smart Charger
(1) 60W USB-C Cable to USB-C Cable
(1) Product Instruction Manual

Needed to Complete
(1) 10W minimum USB-C power supply adapter
*A higher wattage power supply will increase the output power of the S100 charger (up to 100W).
Introduction
The S100 Smart USB-C Charger — from the new generation of Spektrum™ Smart electronics — brings today's most advanced and user-friendly charging technology to RC pilots and drivers of all skill levels.

Features
Advanced, user-friendly Smart charging technology that fits into any hobby budget
Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver
Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable
Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features)
Smart software tracks and stores numerous smart battery data
Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
Charges up to 4S LiPo/LiFe/LiHV batteries
Includes an efficient, low-noise cooling fan
Sleek, sturdy case fits well on a workbench and in pit or field bags
IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors
Overview
With its up to 100W power, new user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S100 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery with the S100 charger. Use it together with Smart batteries, and you'll be amazed by its incredible functionality and performance.

The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected.

Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required.

Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. All you need is a common USB-C power adapter, and you're ready to go.

Video Overview

CHARGING OUTPUT
SELECT IC3® OR IC5® CHARGING OUTPUT
The S100 Smart USB-C Charger includes IC3® and IC5® output ports for charging your standard Smart batteries without adapters. Use the slider to select either the IC3® or IC5® port and then charge your battery with up to 100W power. You can charge AND balance Smart batteries with one simple IC3® or IC5® connection — no separate balance lead is required.

USB-C INPUT POWER INDICATOR
The S100 Smart Charger can be powered by any conventional USB-C cable and USB power supply. The S100 Smart Charger uses USB-C Power Delivery technology to get the most power out of your USB-C Power Supply. During initial power up, the S100 battery level indicator bars will illuminate, indicating the amount of power available from your USB-C power supply. The more wattage from your USB-C, the more powerful your S100 Smart Charger. (USB-C Power Supply not included)

COMPACT CASE DESIGN
The charger's sleek case fits perfectly on your workbench and in your pit or field bag. Its power cord is detachable for easy transport. Rubber bottom grips help the charger stay in place as you connect, charge, and disconnect your RC batteries. Update the charger's firmware through the same USB-C power port on the back of the S100 charger.

Display    LED
Input Voltage    DC 5.0 - 20.0V, USB-C
Part Type    Electronics
Product Height    1.42" (36 mm)
Battery Type    LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell)
PC Connectivity    Yes
Programmable    Yes
Battery Temperature Monitoring    Yes
Integrated Balancing    Yes - Internal Balancer & External Adapter
Battery Balance Connector    JST-XH
Selectable Charge Rate    Yes
Technology    Smart
Low Input Voltage Protection    Yes
Application    RC Model Battery Charger
Product Width    2.83" (72 mm)
Peak Detection    Yes
Software Updates    Yes
Short Circuit Protection    Yes
Over Current Protection    Yes
Connector Type    IC3, IC5
Maximum Charge Rate    1A / 2A / 3A / 6A User Selectable
Product Length    3.86" (98 mm)
Thermal Protection    Yes
