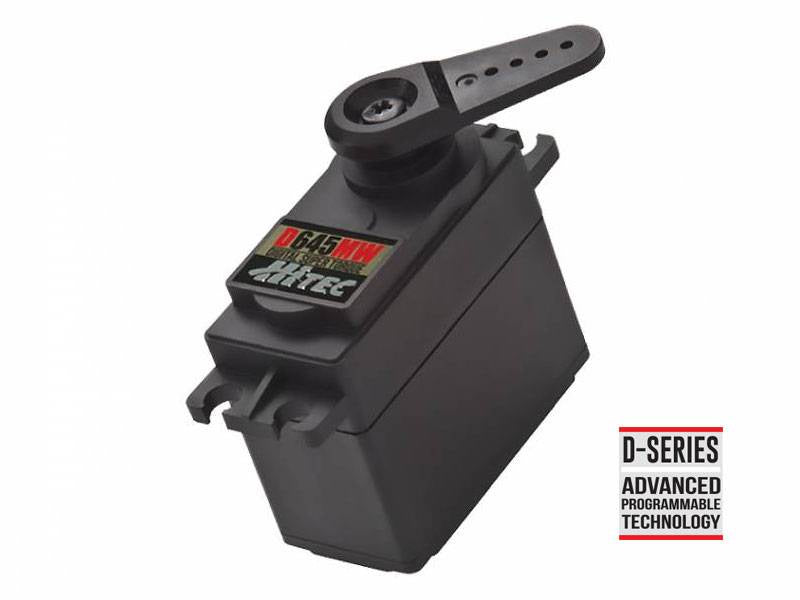

D645MW Servo STD MG, Digital,
D645MW Servo STD MG, Digital, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We use tracked courier for fast delivery New Zealand wide
Description
Description
Product Description
The metal D-645MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
D645MW Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.28 ~ 0.20 ~ 0.17 |
| Maximum Torque Range oz. / in. | 115 ~ 158 ~ 180 |
| Maximum Torque Range kg. / cm. | 8.3 ~ 11.3 ~ 12.9 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 500 mA |
| Stall Current Draw | 2,650 mA |
| Dead Band Width | 2 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.77 x 1.48 |
| Dimensions (Metric) | 40.6 x 19.8 x 37.8 |
| Weight (Ounces) | 2.11 |
| Weight (Gram) | 57.0 |
| Circuit Type | 32bit Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
