Traxxas  |  SKU: 82224-4-Tan

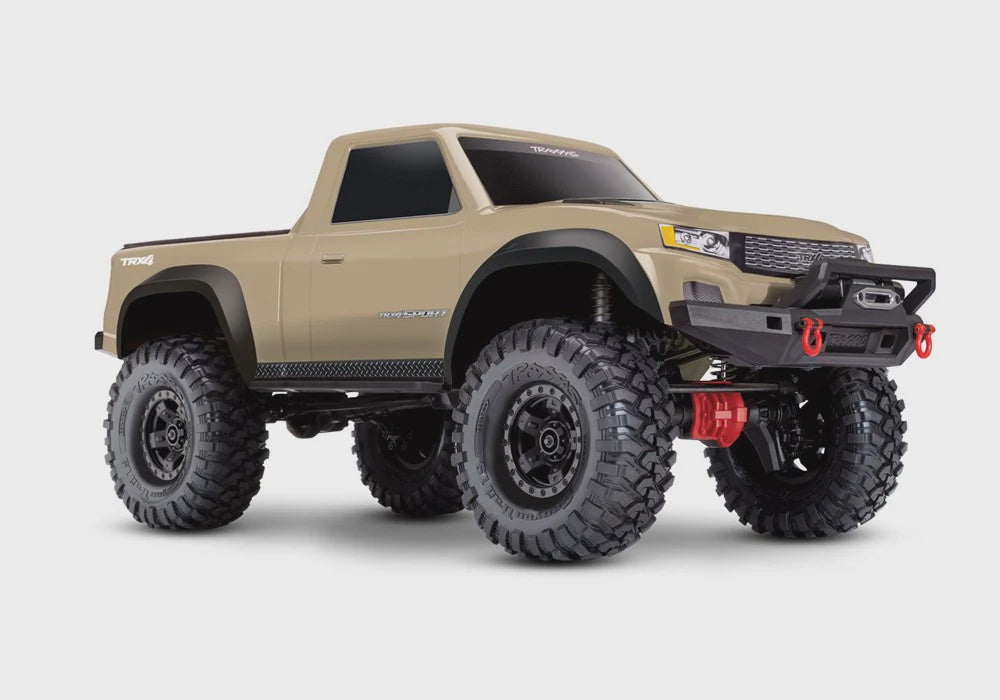

Traxxas TRX-4 Sport 4WD Electric Crawler Tan

$649.90
Tax included Shipping calculated at checkout.


Delivery and Shipping

We use tracked courier for fast delivery New Zealand wide

Description

Traxxas TRX-4 Sport 4WD Electric Crawler Tan

Tough, Clipless Pickup Truck Body
Clipless design for smooth body appearance
Rugged internal body cage for added rigidity
Low profile bumpers for increased clearance
Red differential covers and D-rings
Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
Fully waterproof design
Five drive profiles
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)
Titan® 550 Motor
Powerful Titan 21T reverse rotation motor with internal cooling fan
Precise preset gear mesh adjustments
Motor retention separate from gear mesh
TQ™ 2.4 GHz 2-Channel
Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Rigid Steel Frame
1.5 mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails
Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts
Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Spool-locked front and rear differentials
Steel gear transfer case
Transmission
Single-speed with steel gears
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing
Steering
Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer
Suspension
Front — 3 link with panhard
Rear — triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
Rugged black 5-spoke wheels
Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Traxxas TRX-4 Sport 4WD Electric Crawler Tan

What’s In The Box:
TRX-4, Ready-To-Drive model
XL-5 HV waterproof electronic speed control
Titan™ 21T reverse rotation motor
TQ 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.

Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Model Name: TRX-4 Sport Clipless
Model Type: Trail / Crawler
Model Skill Level: 1
Scale: 1/10
Weight: 5.79 pounds (2.63 kg)
Length: 21.93 inches (557 mm)
Width: 9.78 inches (249 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)

MOTOR SPECS

Motor Name: Titan® 21T Reverse Rotation
Motor Type: High-torque brushed motor
Motor Weight: 8.47 ounces (240 g)
Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter: 1.53 inches (39 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Bullet

ESC SPECS

ESC Name: XL-5™ HV
ESC Type: Brushed
ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight: 2.60 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 14 gauge
