DYS  |  SKU: 206000014-0

DYS 1804-2300KV CCW/CW Motors Set

$63.90
Tax included Shipping calculated at checkout.


Delivery and Shipping

We use tracked courier for fast delivery New Zealand wide

Description

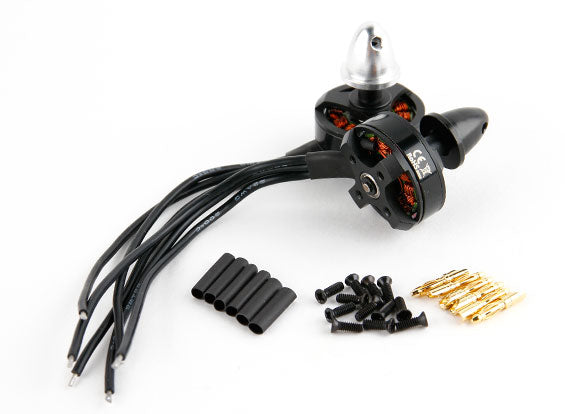

The DYS BX series of motors are a balance of quality, performance and price. All BX motors come with integrated one piece CNC motor housing and prop shaft making for a light, strong and compact design. The BX motors come packaged as a set of 2 motors, one CW rotation and one CCW rotation with matching prop nuts. Also included with the set is 2mm bullet connectors and matching mounting hardware. 1804-2300 multirotor motor is ideal for small 200~250mm multirotors and 5 inch props.

Specifications:

RPM/V: 2300kv

Dimensions: 23 × 13mm

Shaft: 2mm main shaft and 5mm prop shaft

Voltage: 2S~3S (7.4v to 11.1v)

Weight: 16g

Watts: 89W

Max Current: 8A

ESC: 7amp to 12amp

Suggested Prop: 5x3 (3S 11.1v) ~ 6x2 (2S 7.4v)

Motor Mount Holes: M2 x 12mm

Included:

2 motors 1 CW/1 CCW

2 prop nuts

Bullet conectors 2mm

Mounting Hardware
