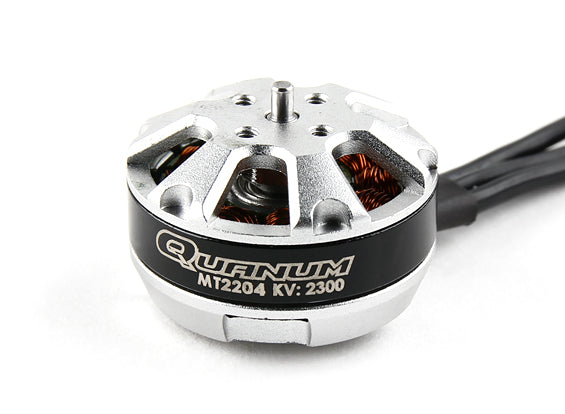

Quanum MT 2204 2300KV brushless motor

Quanum MT series motors are Spec built by DYS, well known in the industry for their quality and performance.

The MT line uses quality NMB bearings, high pole counts for torque and smooth operation and all have standardized universal mountings in their given size. Quanum has spec’d the motors with N42sh magnets and .2mm laminations for optimal efficiency. The MT’s also have ample motor wire length for a cut to fit installation, with included bullet connectors and shrink tube. Another great feature is that Quanum spec’d all the motors to come with mounting hardware in various lengths, as well as both hub and direct mount propeller options, so installation is a snap.

Each Quanum motor is QC checked for balance, wind, performance and mechanical tolerance. The DYS brand is well known for their BE series and the new spec built MT line will set new standards of value vs performance.

Features:

• High Power N42sh magnets

• Precision NMB bearings

• .2mm laminations for optimal efficiency

• Ample cut to length motor wires for a clean install

• Direct mount propeller or Hub style compatible

• Multi-length mounting hardware included

Specs:

KV(RPM/V): 2300

Lipo cells: 2~3

Number of Poles: 12/14

Size: 2204

Motor Shaft: 3mm

prop shaft: 2mm stub with 9mm hole to hole direct mount, 5mm Prop shaft

Weight: 25g

Bolt hole spacing: 16x19mm

Lamination thickness: .2mm

Magnets: N42sh

Connector: 3.5mm bullet
