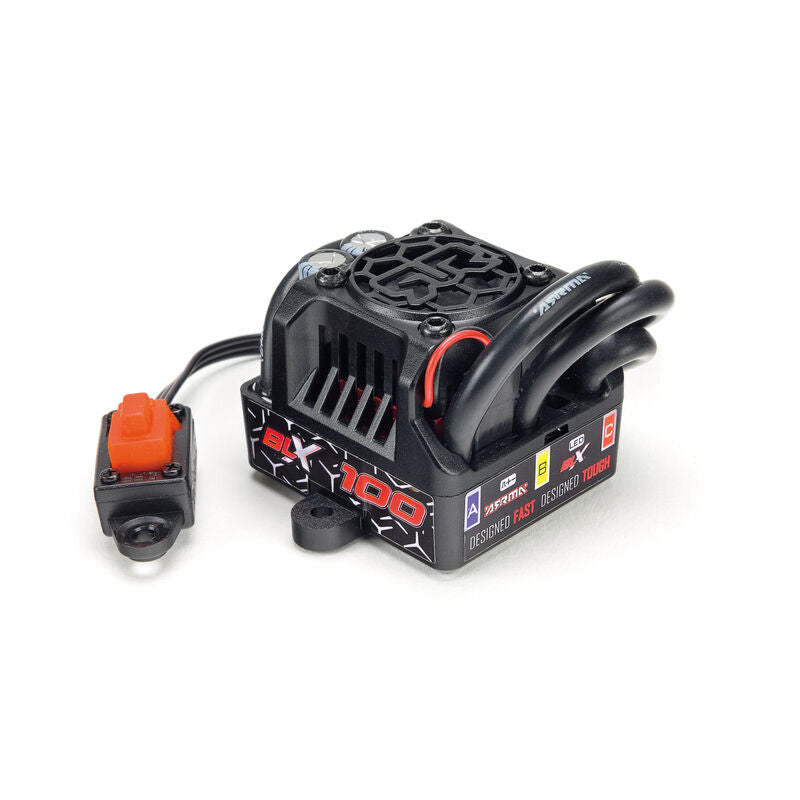

AR390069 BLX100 Brushless 1/10 3S ESC suits Granite, Senton, Bigrock 4X4 3S BLX by ARRMA

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

Features

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

Battery usage 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH

Low Voltage Cut-Off (LVC) 3.4V per cell

Thermal Protection Temperature 125°C / 257°F

Over-Voltage Protection Over 12.6V

BEC Voltage 6V

BEC Current 4A

ESC Length 43mm / 1.69"

ESC Height 34mm / 1.34"

ESC Width 54.5mm / 2.15" (Including hold-down tabs)

ESC Weight 120g / 4.2oz

Receiver Wire Length 170mm / 6.70"

Battery Wire Length 125mm / 4.92"

Motor Wire Length (Including Connector) 200mm / 7.87"

Switch Length 110mm / 4.33"

Switch Width 12.8mm / 0.5"

Switch Height 18mm / 0.71"

Motor Bullet Connector Size 4mm / 0.16"

Wire Specifications 12AWG

ESC Battery Connector Type EC5

Includes

1 x BLX100 Brushless 3S ESC
