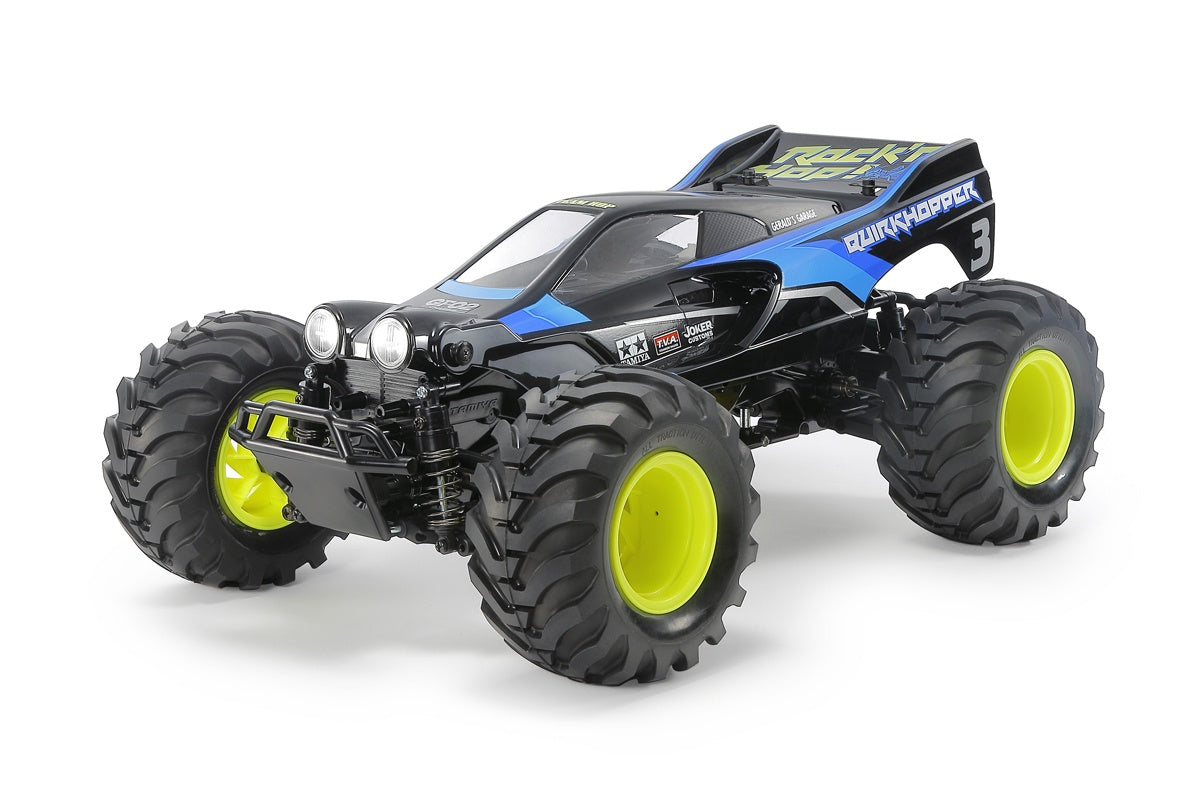

1/10 SCALE R/C 4WD OFF ROAD CAR QUIRKHOPPER (GF-02 CHASSIS)

This R/C assembly kit is a unique model with a slim buggy body and big tires. The rigid and lightweight bug-inspired polycarbonate body has a distinctive style with a front face employing twin headlights, side air intakes and a rear wing that flows into the body sides. Stickers feature designs such as name logos and blue graphics which are perfect for use with a black painted body. The gear-driven 4WD GF-02 chassis utilizes 4-wheel double wishbone suspension and is fitted with 123mm large diameter tires, to ensure powerful performance both on- and off- road.

GF-02 Chassis

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame is inspired by ladder/pipe layouts and features integrated sealed gearboxes which help keep dust and debris out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering linkage uses identical-length tie-rods. Fluorescent yellow one-piece deep rim wheels are paired with 123mm diameter semi-pneumatic tires.

Specifications

★Length: 400mm, width: 280mm, height: 175mm ★Wheelbase: 267mm ★Tire width/diameter: 60/123mm (front & rear) ★Tread: 222mm (front & rear) ★Monocoque chassis with integrated gearboxes ★Gear-driven 4WD ★3-bevel differentials ★2-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Friction dampers ★Gear ratio = 18.03:1 ★Type 540 motor ★ESC included for export.

Separately Required Items

★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

4-Wheel Steering (4WS)

Reassemble suspension and use separately-sold 4WS function transmitter, for 4-wheel steering and the maneuverability and tighter turning circles that it brings.
