1/10 R/C Audi 90 quattro Racing (TT-02)

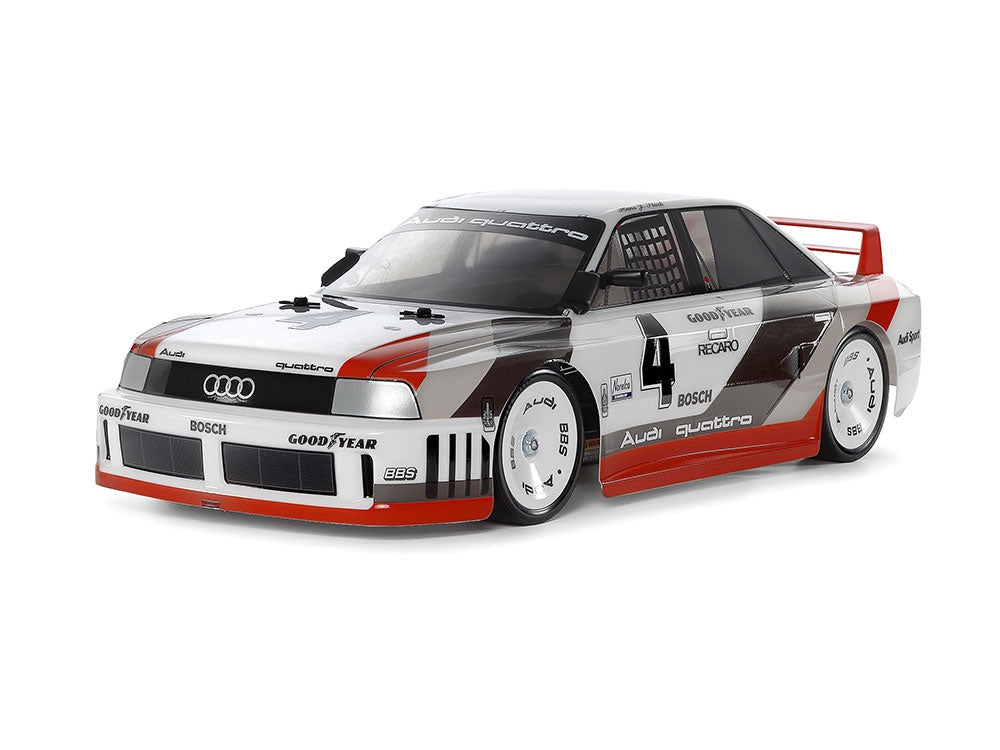

This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.

Specifications
★Length: 446mm, width: 192mm, height: 127mm ★Wheelbase: 251mm ★Tire width/diameter: 26/66mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor ★ESC included for export.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
