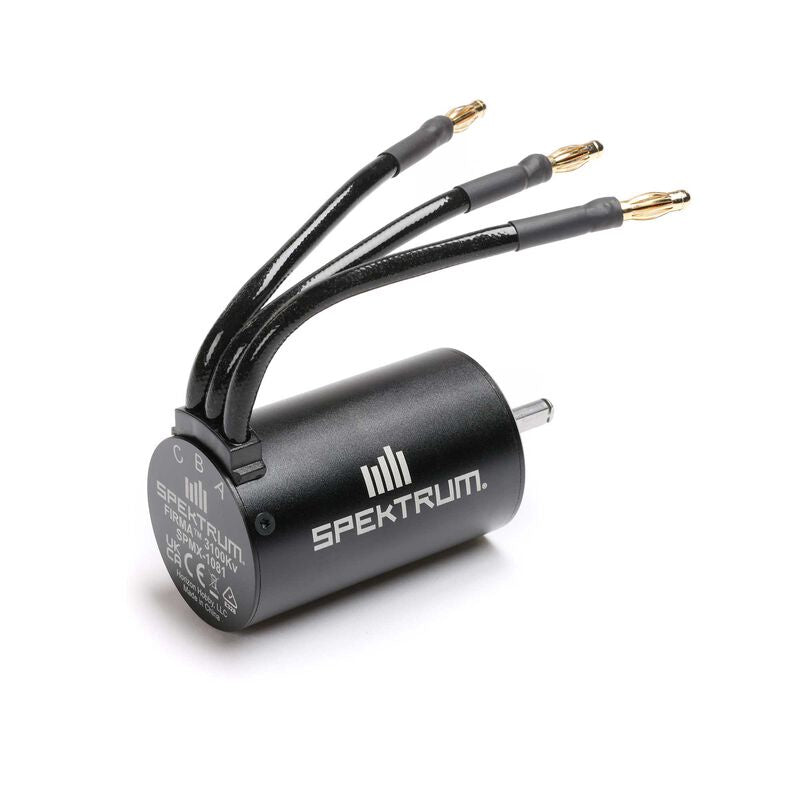

Firma 3660 3100Kv 4 Pole Sensorless Brushless Motor

Product Details
The Spektrum™ Firma™ 3100Kv Sensorless Brushless Motor is designed specifically for the ARRMA® TYPHON™ 4X4 3S BLX 1/8th SMART Buggy running a 2S-3S LiPo. It features a low-cog 4-pole rotor, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation. It is perfectly matched for the Spektrum SLT 80 Amp Brushless ESC/Receiver.

Key Features
2S-3S LiPo power capable
High-efficiency design
Low-cog 4-pole sintered rotor
Precision ball bearings and hardened steel 5mm output shaft

In The Box
(1) Firma 3660-3100Kv 4-Pole Sensorless Brushless Motor
Product Specifications
Connector Type    5mm Bullet
Connector Wire Length    3.74" (95 mm)
Input Voltage    2S – 3S
Motor Type    Brushless
Number of Poles    4
Product Length    2.36" (60 mm)
Product Weight    245g
RPM/Volt (Kv)    3100Kv
Sensored    No
Shaft Diameter    0.19" (5 mm)
Shaft Length    0.76" (19.3 mm)
