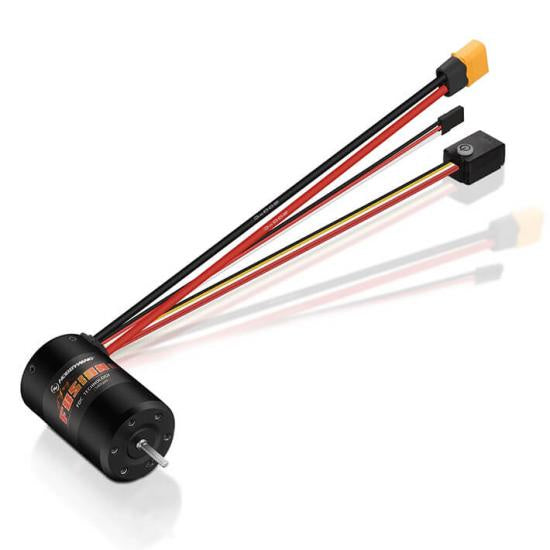

Hobbywing Quicrun Fusion SE 2-in-1 ESC With 1800Kv Sensored Motor
Hobbywing Quicrun Fusion SE 2-in-1 ESC With 1800Kv Sensored Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We use tracked courier for fast delivery New Zealand wide
Description
Description
Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Specifications
Cont./Peak Current: 40A
Input Voltage: 2-3S LiPo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A 6A peak
Motor KV: 1800KV
Diameter/Length of Motor: 36mm / 58.1mm
Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
Motor Poles:4
Wires & Connectors
Input Wires: Red-14AWG-200mm*1 /' Black-14AWG-200mm*1
Input Connectors: XT60
(Note: All the wire length above is the original length, not the length you see from the outside.)
ESC Programming Via
SET Button on ESC: Not Supporterd
LED Program Box: Supported https://www.hobbyhangar.co.nz/hobbywing-30501003-led-program-box
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface (Switch Positionm)
Firmware
Firmware Upgrade: Not Supported
Size & Weight
Size: 36 x 58.1mm
Weight: 201g (Including Wires and Connectors)
Applications
Venicles: 1/10th Rock Crawler
