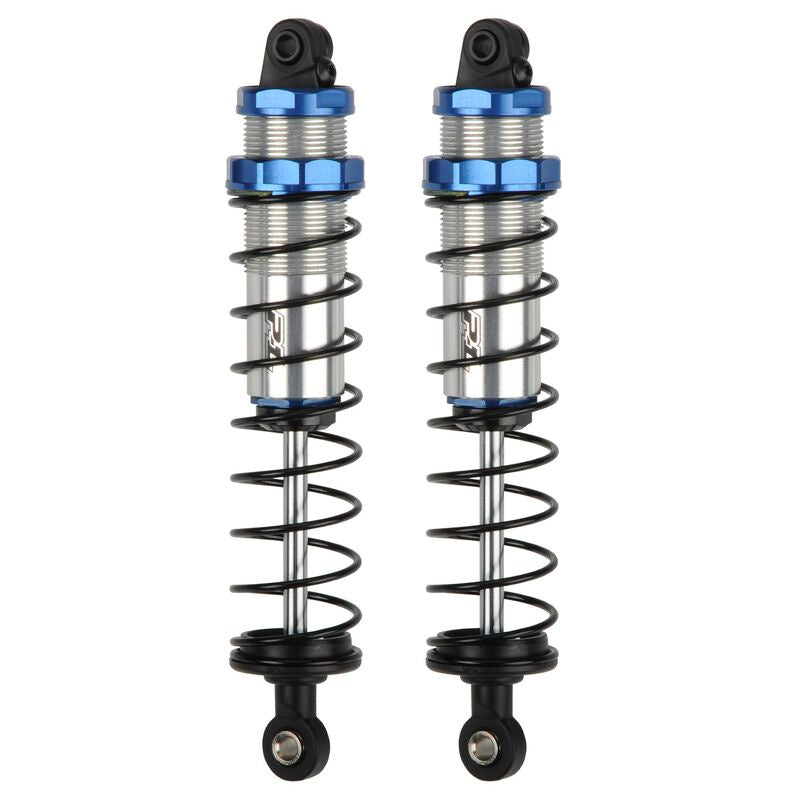

Proline 1/10 Rear SC Pre-Assembled Pro-Spec Shocks

In The Box

• All Components required to build a pair of Rear Pro-Spec Shocks
• PRO630802 Pro-Spec Delrin Piston & Guide Tree
• PRO630803 Pro-Spec Plastic Tree
• PRO630804 Pro-Spec Shock O-Rings
• PRO630805 Pro-Spec Shock Hardware
• PRO630806 Pro-Spec Shock Cartridges
• PRO630808 Pro-Spec Rear Shock Shafts
• PRO630810 Pro-Spec Rear Shock Bodies
• PRO630818 Pro-Spec Rear Yellow Medium Springs

  Features:

  • Smoothest Shocks Pro-Line has Ever Made
  • Pre-Assembled, Just Fill and Go
  • 12mm Big Bore Technology
  • Single Low Friction X-Ring Seal
  • Silky Smooth White Delrin Shaft Guides and Pistons
  • Optional Pistons and Limiters Included

  • Easy Access Bleeder Cap Screw
  • Hard Chrome Coated 3.5mm Shock Shaft
  • Optional Spring Rates available separately (PRO630822)
  • Will work with Hardware kit (PRO606305)
  • Pro-Spec PRO630830 Front also Available

  Overview:

  The next generation of Pro-Line Shock Technology has arrived: Pro-Line Pro-Spec Shocks! Now available Pre-Assembled, just fill with your choice of shock oil (not included). Every last detail has been refined to give you the best performing and best looking Shocks ever made. The Pro-Spec Shocks are a 12mm Big Bore design with a Single Low Friction X-Ring Seal. The Pistons and Shaft Guides are made from Silky Smooth White Delrin for Low Stiction and the 3.5mm thick Shock Shaft is Hard Chrome Coated, just like full-scale racing shocks.

  The Pro-Spec Shocks feature an easy access Bleeder Cap Screw for consistent shock builds every time. Each pair of Pro-Spec Shocks includes 3 different piston options (1.4, 1.6 & 1.8) and a blank piston for drilling to a custom size. Custom Shock Tightening Tools and optional shock limiters are also included. Optional Pro-Spec Springs are available separately (PRO630822). Upper and lower shock pivot balls are included so you can fit a wider range of vehicles right out of the box.

  Experience the Performance of Pro-Line’s Next Generation Shock Technology for yourself - Get Pro-Spec Shocks!

  Check out the Shock Assembly Video:



  Fits:

  • Stampede® 2wd Rear
  • Stampede® 4x4 Rear
  • Rustler® Electric Rear
  • Bandit® Rear *Mount to A-arm inner-most location
  • Short Course Trucks
  • Other 1:10 scale vehicles with Hardware Kit (PRO606305)

  Product Specs

  Part Type

  Shocks & Shock Parts

  Product Length

  Extended Length: 100mm Compressed: 62.5mm

  Scale

  1/10

  Shaft Diameter

  3.5mm

  Vehicle Type

  Short Course Truck
