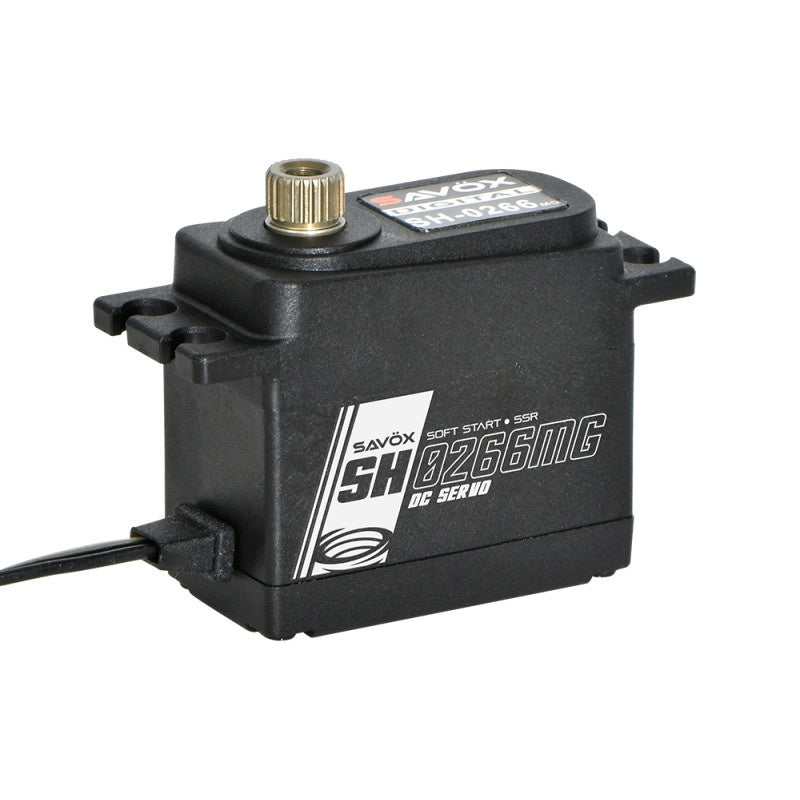

Savox Mini Metal Gear Servo 8.5kg @6v SH-0266MG

Savox Mini Metal Gear Servo 8.5kg 0.13sec @ 6v 32.4x16.8x30.3mm 25g

Lightweight Design, Serious Torque

At just 25g, the SH-0266MG offers the kind of torque you’d expect from a standard-sized servo. That makes it ideal for builds where space and weight are limited – but performance still matters.

SH-0266MG vs B-05: Smaller, Faster, Stronger

In this short video, Andy from Team Savox introduces the SH-0266MG — a powerful mini servo built for compact installations and lightweight RC builds. Whether you’re working on a micro aircraft or a 1/12 on-road car, this servo delivers the torque and speed you need in an impressively small form factor.

Designed with performance in mind, the SH-0266MG brings digital precision, smooth response, and robust durability to smaller-scale platforms. Watch the video to get an overview of its key features and find out why it’s quickly becoming a favorite in the mini servo class.

Features:

Mini digital DC motor servo
8.5 kg/cm torque at 6.0V
Speed 0.13 sec/60° at 6.0V
DC core motor for smooth and predictable operation
Digital controller for accurate positioning and reliable response
Metal gear construction for improved durability
Lightweight design, only 25 g
Compact mini-size format for space-limited installations
Water/dust-resistant protection
21T spline output shaft
Ideal for small electric aircraft, 1/12 scale on-road cars and compact RC applications
Technical Specifications:

Model: SH-0266MG
Servo Type: Mini digital servo
Motor Type: DC core motor
Gear Type: Composite + metal gears
Case Type: Composite case
Operating Voltage: 4.8V – 6.0V
Torque @ 4.8V: 6.5 kg/cm
Torque @ 6.0V: 8.5 kg/cm
Speed @ 4.8V: 0.16 sec/60°
Speed @ 6.0V: 0.13 sec/60°
Quiescent Current: 6 mA
Rated Current: 200 mA
Blocking Current: 1500 mA
Protection: Water/dust resistant
Positioning: VR potentiometer, direct drive
Spline: 21T, 4.8 mm
Dimensions: 32.4 x 16.8 x 30.3 mm
Weight: 25 g
Connector: JR universal connector with coloured lead
Packaging Content:

1x Savox SH-0266MG digital mini servo
Standard servo mounting hardware
Standard servo accessories
